Introductions

Welcome! Below you’ll find all slides and instructions for the hands-on activities for the workshop. the workshop is quite extensive and you will probably not be able to complete it completely tonight. The good news is that this site will remain available long after the event so that you can refer back to the material at any time.

Below please find the slides presented tonight:

Prerequisites

You can participate in this workshop using NativeScript Playground or NativeScript Sidekick.

The NativeScript Playground is a browser-based environment for developing simple apps and does not require any additional software on your PC. It requires only two apps on your mobile device.

NativeScript Sidekick includes the NativeScript CLI and and allows you to create apps using your favorite IDE. If you want to build your apps on your machine, you need to set up each platform (iOS/Android) you intend to build for on your development machine. If you plan to use only the Cloud Build functionality, the local installation for iOS or Android can be ignored.

NativeScript Sidekick installation instructions

TIP: If you run into issues completing the setup instructions, try joining the NativeScript Slack and asking questions in the #getting-started channel.

For ease of development NativeScript extensions are available for Visual Studio Code and the JetBrains IDEs like WebStorm and IntelliJ IDEA.

If you don’t have an IDE installed, you could download and install Visual Studio Code, and then install the editor’s NativeScript extension.

Getting Started with the NativeScript Playground

Now you’ll learn how to use the NativeScript Playground to get started quickly, build your first app, and run the app on your phone.

About the NativeScript Playground

The NativeScript Playground is a browser-based environment for developing simple NativeScript apps. It’s a great place to get started learning NativeScript, as you can develop apps without needing to install the various SDKs and tools needed for native iOS and Android development. All you need is your browser, and an Android or iOS mobile device connected to the internet to get started.

Exercise: Explore the Playground and Run an App

In this exercise, you’ll explore the NativeScript Playground and learn how to run an app built in the Playground on your mobile device.

Prerequisites

Before we get started, you’ll need to install 2 apps on your mobile device:

In your respective App Store (Google Play or Apple App Store), locate both apps and install them on your mobile device. If you’re having trouble finding the app, use the links above.

Explore the NativeScript Playground

Next, navigate to the NativeScript Playground in your browser.

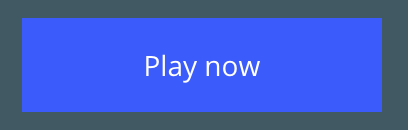

Click “Play now” to begin.

After clicking “Play now” a QR code will appear, and you’ll be notified that your Playground is ready: Open the NativeScript Playground app on your mobile device, and select the “Scan QR code” action.

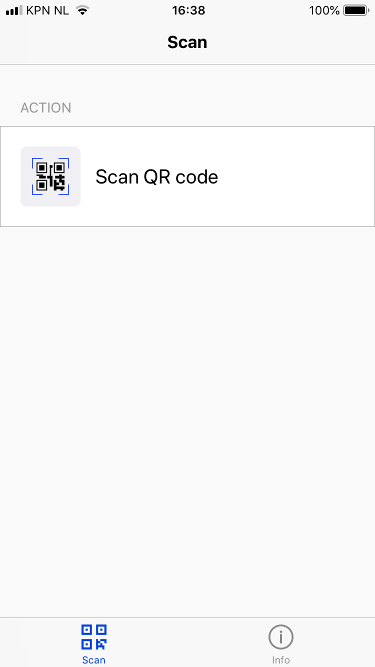

Using the QR code scanner in the NativeScript Playground app, scan the QR code displayed on the NativeScript Playground website.

After scanning the QR code, the NativeScript Playground app will open the NativeScript Preview app and dynamically load the code from the Playground Website and launch a native mobile app on your mobile device!

When all of this happens, you should see this on your mobile device:

…and you should also see the following on the Playground website:

Congratulations! You just used the Playground to write your first mobile app with Angular. Then, you ran the app on your phone. That was fast - and you didn’t need to install anything on your computer!

OK, we know you didn’t have to do much of anything to write this app, but we promise you’ll learn more and build something more advanced during the workshop.

Before we move on, let’s take a minute to understand what happened and explore the NativeScript Playground UI.

How the NativeScript Playground Works

The NativeScript Playground is a web-based IDE. You write your Angular code in the browser, then save it. When you scan the QR code, the NativeScript Playground app coordinates with the NativeScript Preview app and reaches out to the Playground website. The code is pulled down, loaded into the NativeScript runtime in the Preview app, and renders native iOS/Android UI on your mobile device.

Exploring the Playground UI

Now that you’ve learned how the Playground works, let’s explore the UI.

As you’ll notice, the Playground UI is similar to a basic IDE, like Visual Studio Code, Visual Studio, Eclipse, or Web Storm.

On the left is a file explorer, where you can add or update files and folders to your mobile app:

The large central area is a file editor with Intellisense:

The bottom central area shows you which mobile devices are connected to the Playground and device/error logs for debugging purposes.

Connected Devices

Hold on…the Playground shows you connected devices. Yes, that’s right. When your mobile device connects to the Playground, it registers itself with the website. You can see a variety of information about a connected device.

Pretty cool, right? Well, there’s something even cooler about the Playground: LiveSync.

LiveSync

LiveSync is a technology that syncs changes made in the Playground down to your mobile device in real time. This means that you can quickly make changes to your app in the Playground and the changes will be instantly pushed to connected devices. If you’ve ever done mobile development before, you’ll understand how useful this is - getting feedback from your code running on real mobile devices usually takes time, but with LiveSync, it’s instantaneous.

LiveSync in Action

Now that you’ve learned about LiveSync, let’s see it in action.

Exercise: Using LiveSync

In this exercise, you’ll learn how to use LiveSync by interacting wth the Playground website and seeing the app on your mobile device update automatically.

Getting Started

Before we get started with this exercise, be sure to have your Playground app loaded in the NativeScript Preview app.

If your app isn’t running, press the “QR code” button in the Playground website, and re-scan the code on your mobile device:

Understanding Markup

Now that your app is running on your mobile device, let’s make a change.

Start by finding the home.component.html file in the Explorer section on the left, then open it for editing by clicking on it.

You’ll notice some markup in the home.component.html file. It’s not important for you to understand the markup right now, but you should know that any markup you place in this file will affect the native UI generated on the home page of your app.

Even though you may not understand all of the markup, you can probably guess at the meaning on most tags. NativeScript UI markup is can be easy to understand, because it’s similar to HTML.

For example, look at the markup that displays a label on the screen that contains the text “Play with NativeScript!”:

<Label
    textWrap="true"
    text="Play with NativeScript!"
    class="h2 description-label">
</Label>

Changing markup with LiveSync

Let’s change the text in the home.component.html file.

Change the text that reads “Play with NativeScript!” to somethings else. Feel free to use the code snippet below, or your own text.

<Label
    textWrap="true"
    text="Using LiveSync is easy and convenient!"
    class="h2 description-label">
</Label>

After making this change, press the “Save” button:

Then, look back at your mobile device, and watch the UI of the app change.

Easy and cool!

We’ll continue to rely on LiveSync throughout this workshop to get instant feedback in our apps.

Take some time to play around a bit more to get a feel with the various components that NativeScript offers you. You can drag and drop the components from the components palette to the editor. Take a little time to understand the different layouts. They are the key elements for every UI.

Getting started with NativeScript Sidekick

NativeScript Sidekick is a lightweight but powerful GUI client which runs on your desktop and is available for Windows, macOS, and Linux. It enhances the power of the NativeScript Command-Line Interface (CLI) and simplifies the entire process of developing a mobile application. Sidekick is designed to be an unobtrusive companion that complements your favorite code editor, IDE, source control system, and any other tools you use.

NativeScript Sidekick is pretty straigt forward to use, you can find the user-guide here

Create your first app

After NativeScript Sidekick is launched it is realy easy to create your first app - just hit the button Create App. In the Create App dialog you can select a template that serves as base for your app.

Click the Create button and your first app is there.

Configure your IDE

Before you can use the Open in Editor button to open your app directly in your preferred code editor, you need to configure it properly. To do this, you need to provide a valid path to the executable of your favorite code editor.

To open the settings dialog click the settings icon in the rop right corner of Sidekick.

Build your app

With NativeScript Sidekick you have two choices for building your app:

  • Local build - requires the SDK and platform tools to be installed on your machine
  • Cloud build - no SDKs and tooling required

As the screenshot below shows it is just selecting the right switches … at least for Android builds.

If you only plan to build for Android you can continue with chapter 3.

iOS specific - code signing

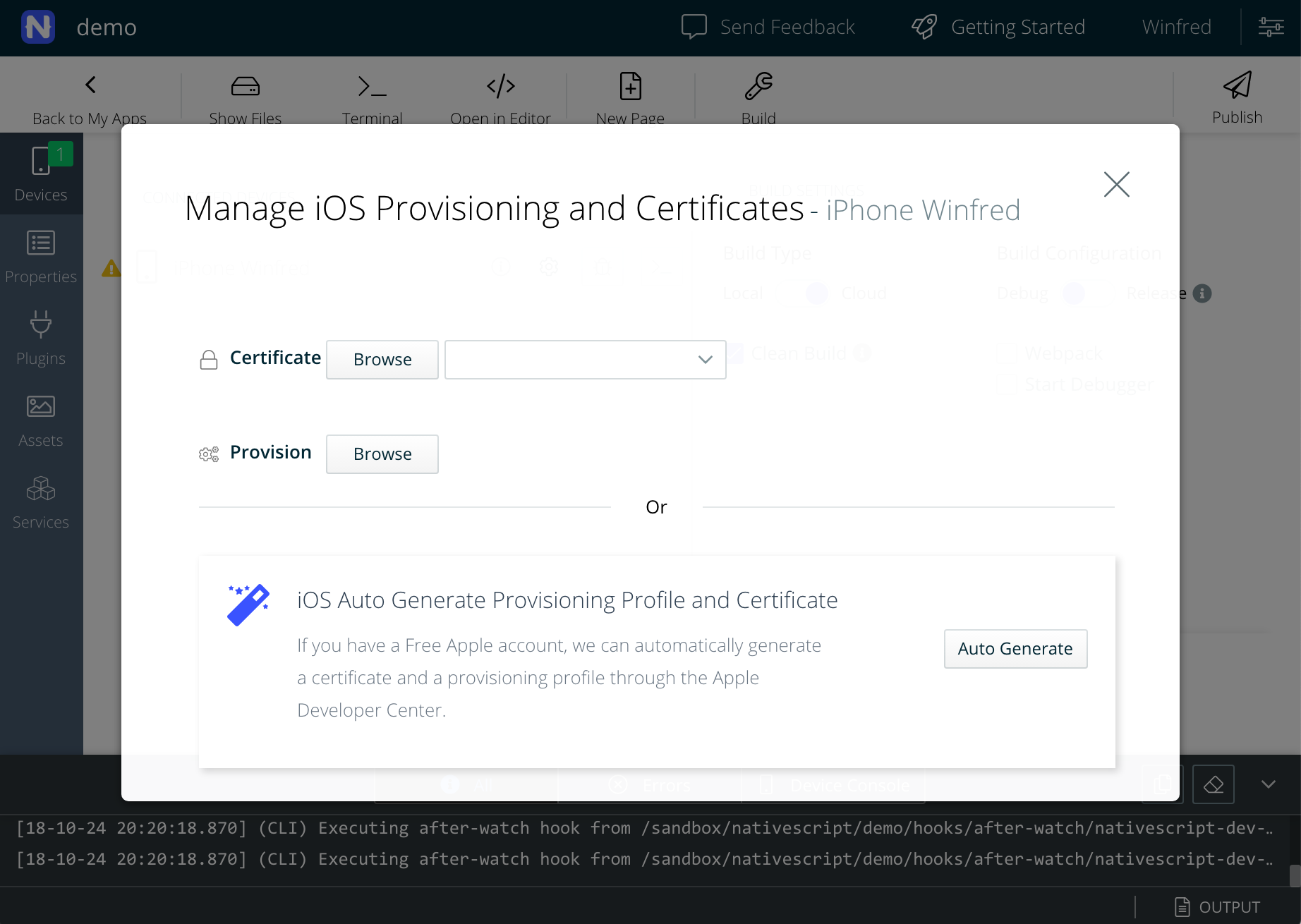

For iOS builds you will need a certificate and a provisioning profile. When you have a paid Apple subscription you probably are familiair with it. In that case you can configure your cerificate and provisioning profile by clicking the gear icon for the connected device. IE in the screenshot below te gear icon next to iPhone Winfred.

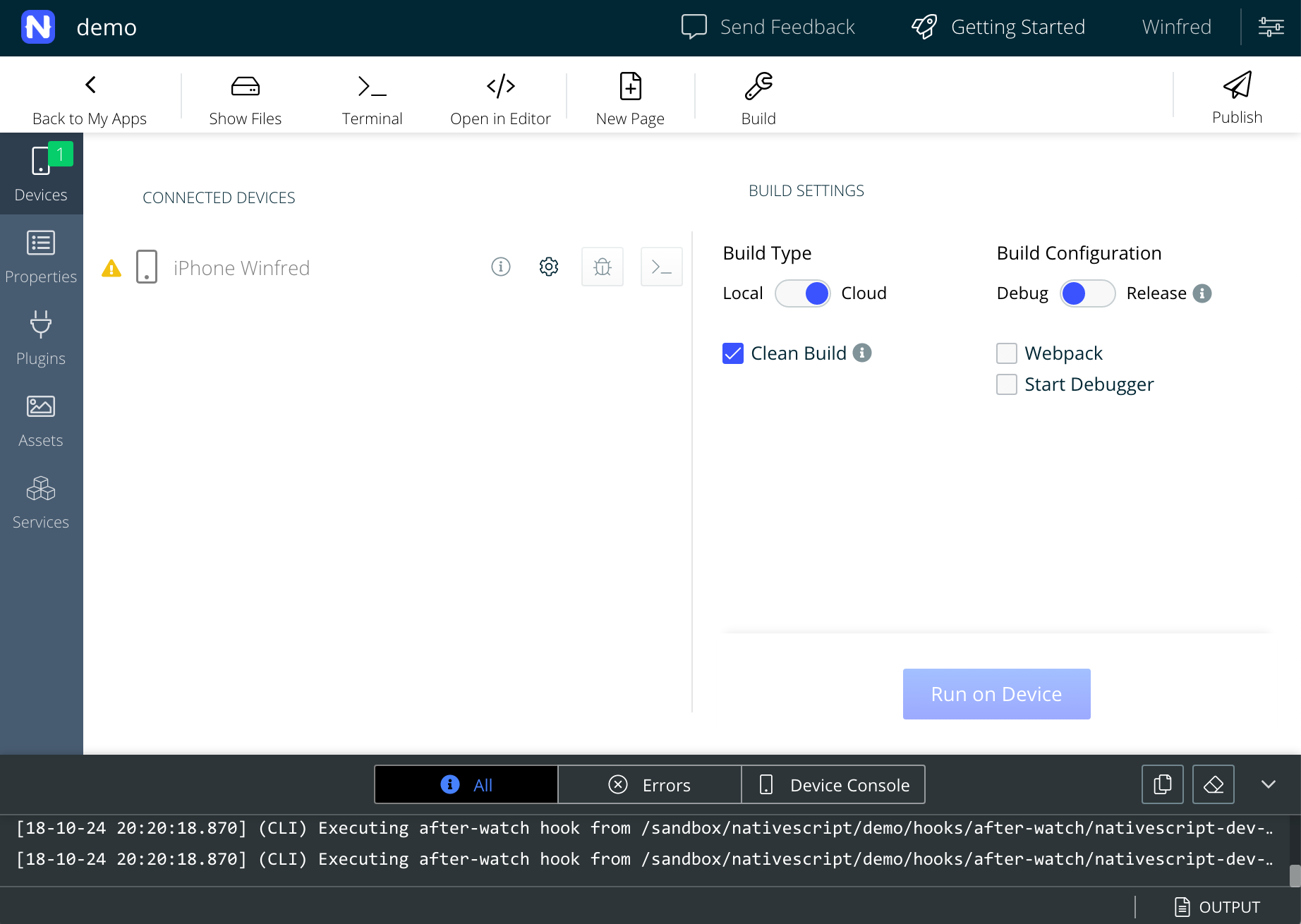

A yellow exclamation mark next to your device indicate issues with the code signing credentials. If you don’t have a certificate and provisioning profile yet, you can generate them by clicking the Auto Generate button. Once the certificate is generated you will need to secure it with a password. In case you get an eror, you probably need to change the Application Identifier. You can access this setting by clicking the Properties icon in the left navication bar.

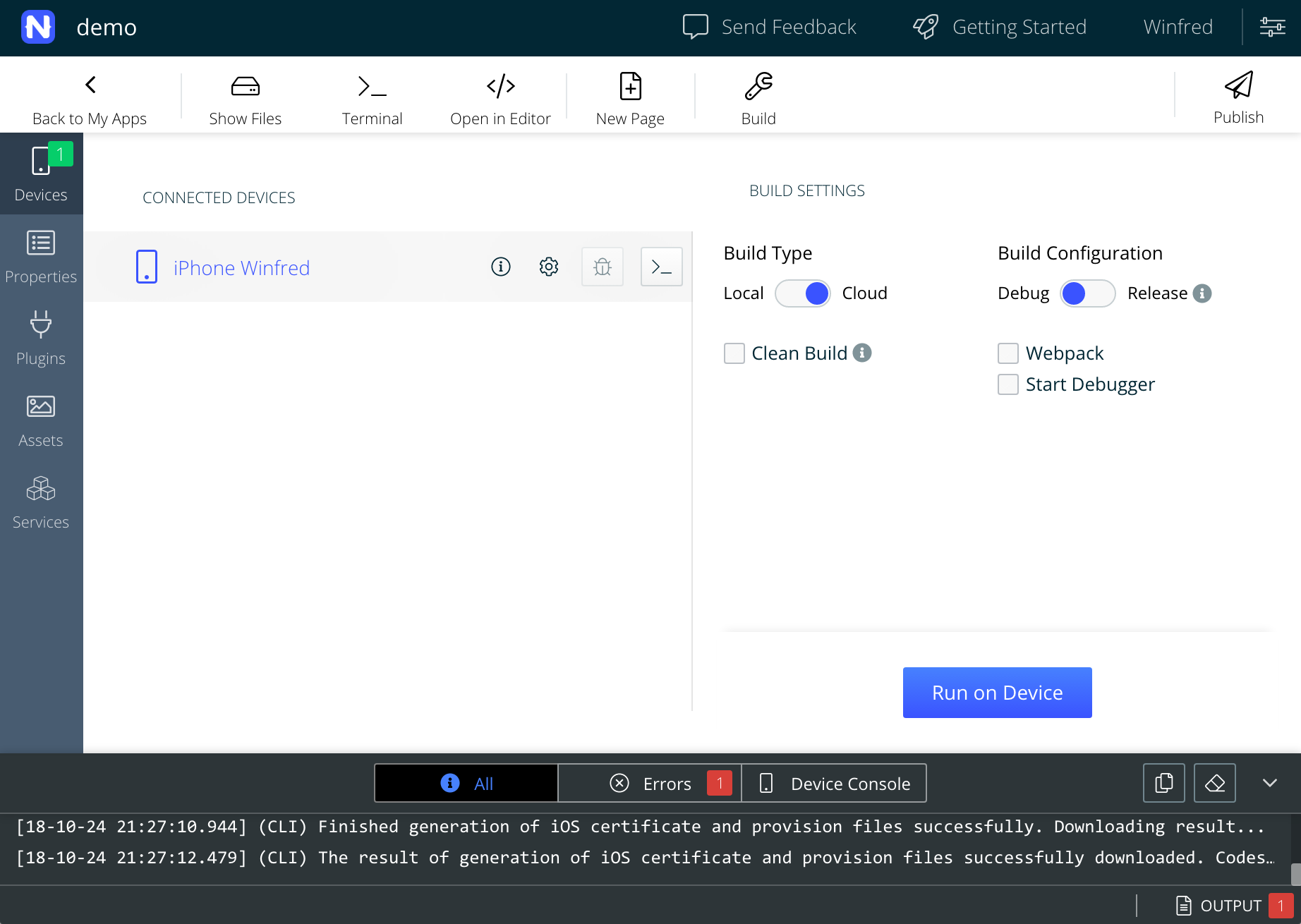

Now you can create a (cloud) build an run the app on your device.

Below links to Sidekick videos that guide you through the build and signing process in more detail

iOS specific - untrusted developer

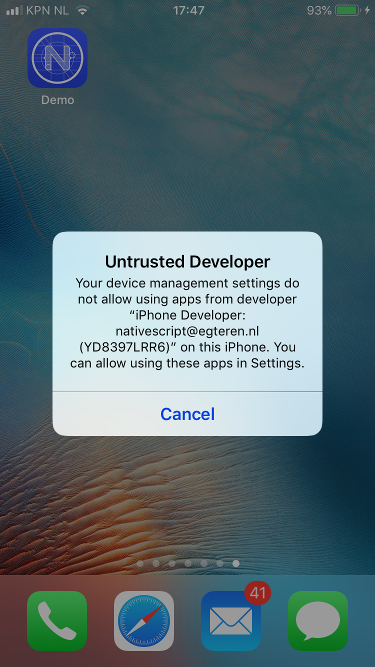

In case you have created your code signing credentials by clicking the Auto Generate button you will see a message Untrusted Developer the first time you start the app.

You can trust your personal profile in the Settings / Instellingen app on your phone. In the Settings / Instellingen app select the options below:

  • General / Algemeen
  • Profile & Device Management / Beheer profielen en apparaten
  • Select your personal profile
  • Trust 'your personal profile'

Once you have trusted your personal profile you can use the app on your device.

Project setup

You can find the files for the workshop on GitHub https://github.com/wvegteren/workshop-nativescript/.

The starter files for the workshop are in the /exercise folder.

If you want to follow the workshop via Nativescript Playground you can skip this chapter and move to chapter 4 to get started.

For NativeScript Sidekick you need to clone the repo and navigate to its /exercise folder by running the following commands.

git clone https://github.com/wvegteren/workshop-nativescript.git
cd workshop-nativescript/exercise

Next, you can open the exercise folder in NativeScript sidekick. From NativeScript Sidekick you can open the project in a IDE of choice and run local builds or cloud build.

Note: for local builds you need to have the platform SDKs installed as mentioned on this page: https://docs.nativescript.org/sidekick/intro/installation.

Lesson 1 - UI

In this lesson we are going to familiarize ourselves with some of the most commonly used UI components in NativeScript.

For this exercise we will use the contents of the app/profile folder, which already contains some pieces of the app that we need.

If you are using Playground then you should head to: https://play.nativescript.org/?template=play-ng&id=HIKegT&v=2 Please Fork the Playground app to create your ‘own’ Playground environment.

If you open profile.component.ts you will notice that our component has an attribute profile with some populated values. In the next few steps we will create a screen that will allow us to display and edit these values.

Here are some examples of UI components:

<Label text="name"></Label>
<TextField hint="your name here" text="Jack"></TextField>
<Switch checked="true"></Switch>
<DatePicker [day]="2" [month]="2" [year]="2002"></DatePicker>
<Slider [minValue]="0" [maxValue]="10" [value]="3"></Slider>
<Button text="Do Something" (tap)="clear()"></Button>

Attribute binding

The above example uses hardcoded values, but you can also use one way binding (with [] around the attribute you want to bind to) to display the values in the profile.

For example:

<Label [text]="profile.name"></Label>
<TextField [text]="profile.name" hint="name"></TextField>

Events

UI Components include events to handle common user interactions. A component can handle events such as: tap, doubleTap, pinch, pan, swipe, rotation, longPress, touch. To leverage them, use the (eventName) notation.

For example:

<StackLayout (longPress)="clearForm()">
  <Label text="Action:" (swipe)="printDirection($event)"></Label>
  <Button text="Do Something" (tap)="doSomething()"></Button>
</StackLayout>

Exercise: Use UI components

Exercise: Use Label, TextField, Switch, DatePicker, Slider, Button

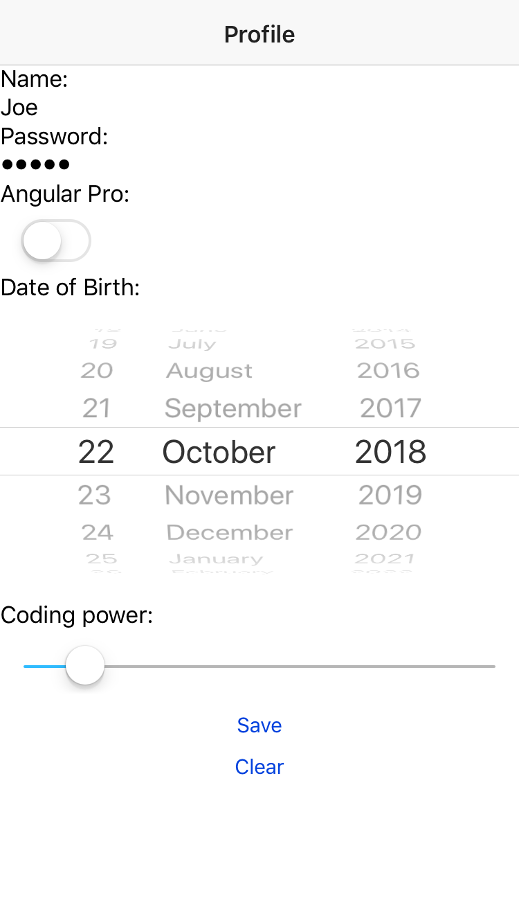

Recreate the below UI and bind the input components to the profile attributes. Additionally, make sure that the two buttons call save() and clear() respectively.

HINT To make a TextField password friendly use secure="true".

Recreate UI

Edit profile.component.html and have fun.

If you are working with a small screen, you may need to add <ScrollView> inside the <StackLayout> to allow the user to scroll in the screen. Like this:

<StackLayout>
 <ScrollView>
   <StackLayout>
     ...
   <StackLayout>
  </ScrollView>
</StackLayout>

NOTE: Your goal at this point is just to get the initial values of the profile property to show up. If you change the values of the form fields and you don’t see those changes when you hit Save don’t worry; we’ll tackle that in the next section.

<ActionBar title="Profile" class="action-bar">
</ActionBar>

<StackLayout>
  <ScrollView>
    <StackLayout>
      <Label text="Name:"></Label>
      <TextField
        [text]="profile.name"
        hint="name">
      </TextField>

      <Label text="Password:"></Label>
      <TextField
        [text]="profile.password"
        hint="password"
        secure="true">
      </TextField>

      <Label text="Angular Pro:"></Label>
      <Switch
        [checked]="profile.angularPro"
        class="switch"
        horizontalAlignment="left">
      </Switch>

      <Label text="Date of Birth:"></Label>
      <DatePicker
        [day]="profile.dob.getDate()"
        [month]="profile.dob.getMonth()+1"
        [year]="profile.dob.getYear() + 1900">
      </DatePicker>

      <Label text="Coding power:"></Label>
      <Slider
        [value]="profile.codingPower"
        [minValue]="0"
        [maxValue]="10"
        class="slider">
      </Slider>

      <Button text="Save" (tap)="save()"></Button>
      <Button text="Clear" (tap)="clear()"></Button>
    </StackLayout>
  </ScrollView>
</StackLayout>

Two-way binding

One-way binding is not particularly useful for input forms. This is where [(ngModel)] comes in handy.

Each of the input components you used a moment ago allows you to use [(ngModel)] to configure two-way binding:

<TextField [(ngModel)]="email" hint="your name here"></TextField>
<Switch [(ngModel)]="optIn"></Switch>
<DatePicker [(ngModel)]="dob"></DatePicker>
<Slider [(ngModel)]="size" [minValue]="0" [maxValue]="10"></Slider>

Exercise: Two way binding

Exercise: Two-way binding

Update all input components to use two-way binding. Test it by clicking the Clear and Save buttons and see what happens.

NOTE: To keep an eye on the slider value, print it in the label above it: <Label [text]="'Coding power:' + profile.codingPower"></Label>

<ActionBar title="Profile" class="action-bar">
</ActionBar>
<StackLayout>
  <ScrollView>
    <StackLayout>
      <Label text="Name:"></Label>
      <TextField
        [(ngModel)]="profile.name"
        hint="name">
      </TextField>

      <Label text="Password:"></Label>
      <TextField
        [text]="profile.password"
        hint="password"
        secure="true">
      </TextField>

      <Label [text]="'Angular Pro: ' + ((profile.angularPro) ? 'Yes': 'No')"></Label>
      <Switch
        [(ngModel)]="profile.angularPro"
        class="switch"
        horizontalAlignment="left">
      </Switch>

      <Label [text]="'Date of Birth: ' + profile.dob.toLocaleDateString()"></Label>
      <DatePicker
        [(ngModel)]="profile.dob">
      </DatePicker>

      <Label [text]="'Coding power:' + profile.codingPower"></Label>
      <Slider
        [(ngModel)]="profile.codingPower"
        [minValue]="0"
        [maxValue]="10">
      </Slider>

      <Button text="Save" (tap)="save()"></Button>
      <Button text="Clear" (tap)="clear()"></Button>
    </StackLayout>
  </ScrollView>
</StackLayout>

Theme

Now that we have the profile page doing something sort of useful, let’s make it look a little bit better.

The good news is that NativeScript comes with many built in themes.

Color Schemes

Most of the standard UI components come with styles that you can use for quick styling improvements.

Text-based components can use:

  • text-primary, text-muted, text-danger to change the text color,
  • text-center, text-left, text-right to change the alignment of the text,
  • text-lowercase, text-uppercase, text-capitalize to apply text transformation

For example:

<Label text="Name" class="text-primary text-right"></Label>
<Label text="Email" class="text-danger"></Label>

Buttons can use:

  • btn, btn-primary, btn-outline, btn-active - to change the general style
  • btn-rounded-sm and btn-rounded-lg - to make the buttons rounded
  • btn-blue, btn-brown, btn-forest, btn-grey, btn-lemon, btn-lime, btn-ruby, btn-sky - to change the primary color (this only works in conjunction with btn-primary)

For example:

<Button text="Primary" class="btn btn-primary"></Button>
<Button text="Outline" class="btn btn-outline"></Button>
<Button text="Orange" class="btn btn-primary btn-ornage"></Button>
<Button text="Rounded Grey" class="btn btn-primary btn-grey btn-rounded-sm"></Button>

Recreate UI

Other components can use

  • action-bar - for the default <ActionBar> styling
  • switch - for the default <Switch> styling
  • slider - for the default <Slider> styling

Margins and padding

You can use predefined styles for margins and padding. Use m for margin and p for padding. Then optionaly add:

  • -t: top
  • -b: bottom
  • -l: left
  • -r: right
  • -x: horizontal (i.e. both left and right)
  • -y: vertical (i.e. both top and bottom)

Finally add the size: 0, 2, 4, 5, 8, 10, 12, 15, 16, 20, 24, 25, 28, 30

For example:

<StackLayout class="m-x-10 p-5">
  <Label text="name" class="m-l-10"></Label>
  <Button text="Go" class="btn btn-primary p-20"></Button>
</StackLayout>

Note: To read more about themes, go to the NativeScript theme docs.

Exercise: Theme

Exercise: NativeScript Theme

Step 1

Update the UI to make it look more like the one in the picture below.

Recreate UI

HINT 1 You may need to update the margin on the StackLayout, so that the UI components don’t stay too close to the edge of the screen.

<ActionBar title="Profile" class="action-bar">
</ActionBar>

<StackLayout class="form m-10">
  <ScrollView>
    <StackLayout>
      <Label text="Name:" class="text-primary"></Label>
      <TextField
        [(ngModel)]="profile.name"
        hint="name">
      </TextField>

      <Label text="Password:" class="text-primary"></Label>
      <TextField
        [(ngModel)]="profile.password"
        hint="password"
        secure="true">
      </TextField>

      <Label [text]="'Angular Pro: ' + ((profile.angularPro) ? 'Yes': 'No')" class="text-primary"></Label>
      <Switch
        [(ngModel)]="profile.angularPro"
        class="switch"
        horizontalAlignment="left">
      </Switch>

      <Label [text]="'Date of Birth: ' + profile.dob.toLocaleDateString()" class="text-primary"></Label>
      <DatePicker
        [(ngModel)]="profile.dob">
      </DatePicker>

      <Label [text]="'Coding power:' + profile.codingPower" class="text-primary"></Label>
      <Slider
        [(ngModel)]="profile.codingPower"
        [minValue]="0"
        [maxValue]="10">
      </Slider>

      <Button text="Save" (tap)="save()" class="btn btn-primary"></Button>
      <Button text="Clear" (tap)="clear()" class="btn btn-outline"></Button>
    </StackLayout>
  </ScrollView>
</StackLayout>

Step 2

Open app.css and change the imported style to each of the values below to see which one you like the most:

  • aqua.css
  • blue.css
  • brown.css
  • core.dark.css
  • core.light.css
  • forest.css
  • grey.css
  • lemon.css
  • lime.css
  • orange.css
  • purple.css
  • ruby.css
  • sky.css

(Bonus) - Use the NativeScript Themebuilder tool to create your own theme

Build your own theme using the NativeScript theme builder. This cool tool lets you view changes in a web browser, download a file, and style your app with a custom CSS file. Try building a patriotic theme with your flag’s colors, then download it to the root folder of your app. To see your theme, edit app.css to use the core theme and your new custom theme, like this:

@import 'nativescript-theme-core/css/core.light.css';
@import '~/custom.css';

Make something beautiful!

Animations

Adding animation to your app can really enhance its attraction and usefulness. There are several ways to add animation:

  1. Leveraging Angular-style animation
  2. Use NativeScript’s built-in animation library
  3. Use Animate.css
  4. Use CSS keyframe animation techniques
  5. Use Lottie (AirBnB’s library) or Keyframes (by Facebook) animations
  6. Use a community-generated animation plugin

Let’s work with keyframe animations to give you a feel for how animations work in NativeScript apps.

Exercise: Animations

Exercise: Animations

Enhance the slider so that when you slide it to a value greater than 7, its color changes and the label above it expands. To do this, you need to leverage the Angular bindings we learned about above.

Give the slider a class so that we can style it in the css, and bind the class.danger-slider property to the value profile.codingPower > 7:

class="slider"
    [class.danger-slider]="profile.codingPower > 7"

Then, edit the Label above the slider to expand when the slider value is more than 7 by giving it a class name that is bound to that value:

[class.zoom]="profile.codingPower > 7"

Take a look at profile.component.css to see how the keyframe animation is invoked.

<Label [text]="'Coding power:' + profile.codingPower" class="text-primary" [class.zoom]="profile.codingPower > 7"></Label>
<Slider
  [(ngModel)]="profile.codingPower"
  [minValue]="0"
  [maxValue]="10"
  class="slider"
  [class.danger-slider]="profile.codingPower > 7">
</Slider>

.danger-slider {
  background-color: red;
}

.zoom {
  animation-name: zoom;
  animation-duration: 2s;
}

@keyframes zoom {
  from { transform: scale(0.5, 0.5) }
  40% { transform: scale(1.6, 1.6) }
  to {  transform: scale(1.0,1.0) }
}

(Bonus) - Change the animation to spin, instead of zoom.

Instead of zooming, make the label spin around, just for practice. Hint, both profile.component.html and profile.component.css need to be edited.

<Label [text]="'Coding power:' + profile.codingPower" class="text-primary" [class.spin]="profile.codingPower > 7"></Label>
<Slider
  [(ngModel)]="profile.codingPower"
  [minValue]="0"
  [maxValue]="10"
  class="slider"
  [class.danger-slider]="profile.codingPower > 7">
</Slider>

.danger-slider {
  background-color: red;
}

.spin {
  animation-name: spin;
  animation-duration: 2s;
}

@keyframes spin {
  from { transform: rotate(-30) }
  40% { transform: rotate(420) }
  to {  transform: rotate(0)}
}

NativeScript UI

Additionaly you can use a free UI library called NativeScript UI. NativeScript UI is a set of components that enable implementing rich-ui applications and contains components like: ListView, Chart, SideDrawer, Calendar, DataForm, Gauges and AutoComplete.

We won’t cover NativeScript UI in this workshop … but the components are worth looking at.

You can find the Angular Docs for these components here

Lesson 2 - Navigation

Intro

In this lesson we are going to familiarize ourselves with navigation techniques.

Routing configuration

The Angular Router enables navigation from one view to the next as users perform application tasks.

A routed Angular application has one singleton instance of the Router service. When the app’s URL changes, that router looks for a corresponding Route from which it can determine the component to display.

When you create a brand new {N} app, you will straight away get a sample Routes configuration, which should look like this:

const routes: Routes = [
  { path: "", redirectTo: "/items", pathMatch: "full" },
  { path: "items", component: ItemsComponent },
  { path: "item/:id", component: ItemDetailComponent },
];

This tells us 3 things:

  • When the app starts, it should automatically redirect to items path,
  • If you navigate to 'items', you will be provided with ItemsComponent,
  • If you navigate to 'items/somevalue' you will be provided with ItemDetailComponent, which additionally will receive somevalue as id

As your application grows, so will your list of routes. One way to manage them is to group them into related parent<->children groups like this:

const routes: Routes = [
  { path: '', redirectTo: '/articles', pathMatch: 'full' },
  { path: 'items', children: [
    { path: '', component: ItemsComponent },
    { path: ':id', component: ItemDetailComponent },
  ]},
  { path: 'articles', children: [
    { path: '', component: ArticlesComponent },
    { path: 'read/:id', component: ArticleComponent },
    { path: 'edit/:id', component: EditArticleComponent },
    { path: 'search/:tech/:keyword', component: ArticleSearchResultsComponent },
  ]},
];

This time:

  • The default path is for articles,
  • items and items/:id are grouped together, which means that we could change items to something else in just one place,
  • We can also navigate to articles, articles/read/5, articles/edit/5 and articles/search/angular/navigation (this will translate to tech='angular' and keyword='navigation')

There is a lot more you can do in here, which is out of scope for this workshop. See Angular docs for more info on the subject.

Exercise: Routing configuration

Exercise: Routing configuration

Step 1

For this exercise we will use the contents of the app/color folder, which already contains some pieces of the app that we need.

Open app-routing.module.ts and change the redirectTo of the default route to '/color'

{ path: '', redirectTo: '/color', pathMatch: 'full' },

If you are using Playground then you should head to: https://play.nativescript.org/?template=nsday-color. Please Fork the Playground app to create your ‘own’ Playground environment.

Step 2

Now it is time to add routes for the Red and RGB components. Update the children of the color route, so that:

  • 'color/red' path will navigate to RedComponent - you can see how this is done for the blue example,
  • 'color/rgb' + rgb (as a parameter) path will navigate to RGBComponent while passing the rgb parameter
{ path: 'color', children: [
  { path: '', component: ColorComponent },
  { path: 'blue', component: BlueComponent },
  { path: 'red', component: RedComponent },
  { path: 'rgb/:rgb', component: RGBComponent },
]},

One way to add navigation in markup is with the nsRouterLink directive. It is similar to routerLink (which is used in the web), but works with NativeScript navigation.

nsRouterLink expects an array of parameters, which can be matched to one of the routes defined in app.routes.ts.

For example, if we want to create a label that should navigate to a “reading” page and pass it a value, such as “5”, we can achieve this by providing an absolute path. That would look something like this:

<Label text="Angular Navigation" [nsRouterLink]="['/articles/read', '5']"></Label>

Relative Paths

We can also use relative paths. Where you provide the path based on the page you are currently at.

Children

If you are in the articles page (path '/articles') and want to navigate to the same pages as in the previous example. You can use './name_of_child_path' or 'name_of_child_path', like this:

<!--With an embeded param-->
<Label text="Angular Navigation" [nsRouterLink]="['./read', '5']"></Label>
<!--with a param provided separately-->
<Label text="Angular Navigation" [nsRouterLink]="['./read', navigationId]"></Label>

OR

<Label text="Angular Navigation" [nsRouterLink]="['read', '5']"></Label>
<Label text="Angular Navigation" [nsRouterLink]="['read', navigationId]"></Label>

Parent

If you are in the 'articles/read/5' route and you want to provide a relative path back to the parent, you can use '..', like this:

<Label text="Articles" [nsRouterLink]="['..']"></Label>

Siblings

If you are in the 'articles/read/5' route and you want to provide a relative path to the edit page or search page, you can use '../name_of_sibling_path', like this:

<Label text="Articles" [nsRouterLink]="['../edit', 5]"></Label>
<Label text="Articles" [nsRouterLink]="['../search', 'angular', 'navigation']"></Label>

Cheat sheet

[nsRouterLink]="['/absolute']"
<!--Navigate to parent-->
[nsRouterLink]="['..']"

[nsRouterLink]="['../sibling']"

[nsRouterLink]="['./child']" // or
[nsRouterLink]="['child']"

Clear History

Also if you add a clearHistory flag, you can clear the navigation stack. Which means that there won’t be a back button displayed on iOS, or pressing back on Android will not take you back to this page again.

<Label text="Back to Articles" [nsRouterLink]="['..']" clearHistory="true"></Label>

Exercise: Navigation with nsRouterLink

Open color.component.html and update [nsRouterLink] for each button, so that:

  • Blue button navigates to the BlueComponent
  • Red button navigates to the RedComponent
  • Pink button navigates to the RGBComponent with '#ff0088' as the parameter
  • Gray button navigates to the RGBComponent with 'gray' as the parameter
  • Lavender button navigates to the RGBComponent with '#bad' as the parameter

NOTE: The parameter you pass to the “rgb” route won’t have an effect on that page—yet. Later in this section you’ll utilize that data to change the colors on the “rgb” component.

Here is the configuration for each:

Blue

[nsRouterLink]="['/color/blue']" OR [nsRouterLink]="['blue']"

Red

[nsRouterLink]="['/color/red']" OR [nsRouterLink]="['red']"

Pink

[nsRouterLink]="['/color/rgb', '#ff0088']" OR [nsRouterLink]="['rgb', '#ff0088']"

Gray

[nsRouterLink]="['/color/rgb', 'gray']" OR [nsRouterLink]="['rgb', 'gray']"

Lavender

[nsRouterLink]="['/color/rgb', '#bad']" OR [nsRouterLink]="['rgb', '#bad']"

Navigation can also be done with JavaScript.

For that you will either need the standard Router from @angular/router, or RouterExtensions from nativescript-angular/router, which comes with additional functionality: to clearHistory, choose a page transition or navigate back.

Note: If you are working on a project where you need to share the code between web and mobile, then you might want to use the standard Angular Router. However if your project is mobile only, then you should stick with RouterExtensions.

Once you choose which Router to use, navigation is really easy:

  • import the router you need,
  • inject the router in the constructor,
  • call navigate - just like you did with nsRouterLink
import { Router } from '@angular/router';
// or
import { RouterExtensions } from 'nativescript-angular';

@Component({
  selector: 'my-articles',
  templateUrl: './articles/articles.component.html',
})
export class ArticlesComponent {
  constructor(private router: RouterExtensions) {
  }

  readArticle(id: number) {
    this.router.navigate(['/articles/read', id]);
  }
}

Relative path

To use a relative path you need to:

  • import ActivatedRoute, which can be used as the relative point,
  • inject it in the constructor
  • provide it as a parameter for navigate, as relativeTo
import { RouterExtensions } from 'nativescript-angular';
import { ActivatedRoute } from '@angular/router';

@Component({
  selector: 'my-articles',
  templateUrl: './articles/articles.component.html',
})
export class ArticlesComponent {
  constructor(
    private router: RouterExtensions,
    private route: ActivatedRoute) {
  }

  readArticle(id: number) {
    this.router.navigate(['./read', id], { relativeTo: this.route });
  }
}

Cheat sheet

this.router.navigate(['/absolute/path']);
//navigate to parent
this.router.navigate(['..'],         {relativeTo: this.route});

this.router.navigate(['../sibling'], {relativeTo: this.route});

this.router.navigate(['./child'],    {relativeTo: this.route}); // or
this.router.navigate(['child'],      {relativeTo: this.route});

Clear History

To clear history just provide clearHistory into navigate, like this:

this.router.navigate(['/articles', { clearHistory: true }]);

Please note that you must use RouterExtensions for this to work. Also, clearHistory works only with page-router-outlet; this doesn’t work with router-outlet.

To navigate back, you can use RouterExtensions functionality to call either:

  • this.router.back() - always takes us to back the previous view from the navigation stack,
  • this.router.backToPreviousPage() - always takes us back to the previous page from the navigation stack, skipping navigation stack items on the same page.

What is the difference?

Let’s imagine you navigated through a number of paths in this order.

  • navigate /articles
  • navigate /articles/read/1
  • navigate /articles/read/2
  • navigate /articles/edit/3

So now we are at /articles/edit/3.

Calling back or backToPreviousPage, will both result in navigating to: /articles/read/2.

Now calling back would take us to /articles/read/1, which is another article in the same page. However calling backToPreviousPage from /articles/read/2, would take us to /articles.

Default iOS and Android back operations

The default back button which appears in the iOS <ActionBar> performs backToPreviousPage, while the Android back button performs back.

Exercise: Navigation with code

Exercise: Navigation with code

In this exercise we will play with the blue component. The blue.component.html already contains four buttons, each calling a different function.

Your task is to implement the empty functions in blue.component.ts, so that:

  • goRed() navigates to the Red page
  • goPink() navigates to the RGB page with this.pink as the parameter
  • goBack() navigates back
  • goHome() navigates home whilst clearing the navigation history

goRed (Absolute Solution)

this.router.navigate(['/color/red']);

goPink

this.router.navigate(['/color/rgb', this.pink]);

goBack

this.router.back();

goHome

this.router.navigate(['/color'], { clearHistory: true });

Receiving parameters

For components that are expected to receive parameters from the route navigation, you need to use ActivatedRoute.

You just have to perform the appropriate imports:

Import

import { ActivatedRoute } from '@angular/router';

Inject

export class ArticleSearchResultsComponent {
  constructor(private route: ActivatedRoute) {
  }
}

Use

Here we have two options. You can take a snapshot, which will be triggered only when we navigate to this page from another page.

ngOnInit() {
  this.tech = this.route.snapshot.params['tech'];
  this.keyword = this.route.snapshot.params['keyword'];

  this.searchArticles(this.tech, this.keyword);
}

Using a snapshot will not work if we try to navigate from the search to itself, but with different parameters. To make this work, we need to use params.forEach instead.

ngOnInit() {
  this.route.params
    .forEach(params => {
      this.tech = this.route.snapshot.params['tech'];
      this.keyword = this.route.snapshot.params['keyword'];

      this.searchArticles(this.tech, this.keyword);
    });
}

Exercise: Receiving parameters

Exercise: Receiving parameters

In this exercise we will play with the rgb component: rgb.component.ts. Currently every time you navigate to rgb the input parameters are getting ignored. Your task is to intercept the ‘rgb’ parameter and update this.rgb.

ngOnInit() {
  this.route.params
    .forEach(params => this.rgb = params['rgb']);
}

Page Transitions

One of the great things about NativeScript is its ability to use native animations and page transitions with very little effort.

Here is a list of all available navigation transitions

Here is a list of all available animation curves

Transition via html

To add pageTransition in html, just add pageTransition with a name of the transition you need:

<Button
  text="Open Path"
  [nsRouterLink]="['/path']"
  pageTransition="slideBottom">
</Button>

Transition via code

To add page transition in JavaScript, just add a transition object to the navigate options. Just like this:

this.router.navigate(['/relative/path'], {
  transition: {
    name: 'slideBottom',
    duration: 500,
    curve: 'linear'
  }
});

Exercise: Page Transitions

Exercise: Page Transitions

In this exercise we will play with the color and red components.

Step 1

Your task is to update the buttons in color.component.html, so that:

  • The Blue button triggers curl transition
  • The Red button triggers the fade transition
  • The Pink, Gray and #bad buttons trigger the flip transition
  • Blue => pageTransition="curl"
  • Red => pageTransition="fade"
  • Pink, Gray and #bad => pageTransition="flip"

Step 2

red.component.html already contains 4 buttons, each calling a different function.

Your task is to implement the empty functions in red.component.ts, so that:

  • goBlue() navigates to the Blue page with page transition slideTop, duration 2 seconds and curve spring
  • goGray() navigates to the RGB page with gray as the parameter and page transition fade and duration 1 second

goBlue

this.router.navigate(['/color/blue'], {
  transition: {
    name: 'slideTop',
    duration: 2000,
    curve: 'spring'
  }
});

goGray

this.router.navigate(['/color/rgb', 'gray'], {
  transition: {
    name: 'fade',
    duration: 1000
  }
});

Lesson 3 - Components and Services

Services

Services are JavaScript functions that are responsible for doing a specific task. Angular services are injected using a Dependency Injection mechanism and include the value, function or feature that is required by the application. There is nothing especially related to Services in NativeScript Angular–there is no ServiceBase class–but still services can be treated as fundamental to Angular applications.

Creating a service

Creating a Service is really simple. You need to import Injectable function and apply it as the @Injectable decorator. Then we need to create a class for our service and export it:

import { Injectable } from '@angular/core';

@Injectable()
export class MyHappyService {

  public doSomethingFun() {
    console.log('I am a happy bunny... hop, hop, hop');
  }
}

Naming convention

Following the naming convention in Angular, the above service should be placed in a file called: my-happy.service.ts. This is basically the name of the class in lower case, each word (excluding the word service) separated with - and followed by .service.ts.

The same naming convention applies to all files in an Angular app like: currency.pipe.ts, navigation-menu.component.ts, login.model.ts.

Adding the service to app.modules.ts

In order to make our service available in the app, you need to add to providers in the @NgModule. The global @NgModule is located in app.module.ts.

import { MyHappyService } from './my-happy.service';

@NgModule({
  bootstrap: [
    AppComponent
  ],
  imports: [
    NativeScriptModule,
    AppRoutingModule,
    NativeScriptHttpClientModule,
    NativeScriptFormsModule,
  ],
  declarations: [
    AppComponent,
    ProfileComponent
  ],
  providers: [
    MyHappyService
  ],
  schemas: [
    NO_ERRORS_SCHEMA
  ]
})
export class AppModule { }

Injecting services

In order to use a service in a component, we need to inject it in the component’s constructor.

Note: You can also inject services into other services or pipes.

This is done like this:

constructor(private myHappyService: MyHappyService) {
  //constructor code
}

Here is how you inject and then use a service:

import { MyHappyService } from '../my-happy.service';

@Component({
  selector: 'app-mood',
  templateUrl: './mood/mood.component.html'
})
export class MoodComponent {

  constructor(private myHappyService: MyHappyService) {
  }

  showYourMood() {
    this.myHappyService.doSomethingFun();
  }
}

Http

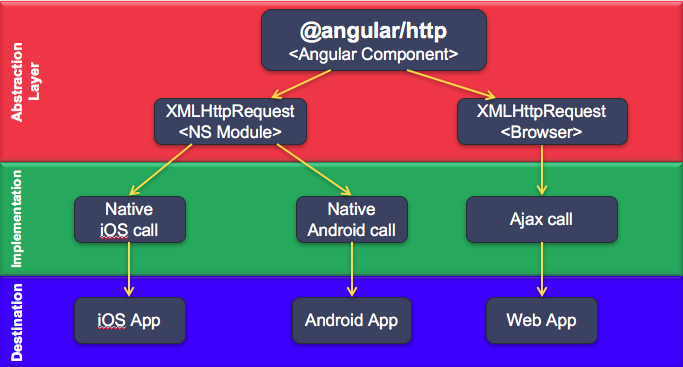

NativeScript comes with its own implementation of the Http module, which uses Android and iOS native functionality to perform the calls.

This is exposed as NativeScriptHttpClientModule, which implements the same interface as the web HttpClient module.

Http: adding the module to the app

This means that all you have to do is declare our NativeScript wrapper in the respective module file and Dependency Injection will take care of the rest.

This is done by adding NativeScriptHttpClientModule to @NgModule imports.

import { NativeScriptHttpClientModule } from "nativescript-angular/http-client";

imports: [
  ...
  NativeScriptHttpClientModule,
],

From this point onwards the code that uses the HttpClient module is exactly the same as the code you would write for a web application.

This gives us a high level Angular Http module that is capable of performing various request natively for Android, iOS and Web.

Http

Http: Injecting the service

Then you can import and Inject the HttpClient module where you are planning to use it.

import { HttpClient } from '@angular/common/http';

constructor(private http: HttpClient) {
}

RxJS

Before we call an API we need to first discuss RxJS. You may have heard of it before - if so feel free to skip ahead. RxJS is the ReactiveX library for JavaScript.

RxJS is a library for using Observables. We aren’t going to discuss observables in detail, but, you do need to know that observables are objects that allow you to subscribe events. For example, if a value changes in an observable, subscribers will be notified of the change. Luckily for us NativeScript and Angular already know how to use observables so we can bind observable objects straight to our UI when we receive them back from our API calls.

Http: calling the service

The http module has a bunch of useful functions like, get, post, put, delete and others. Each takes a url as a parameter and optional options, and then they return an Observable with a Response.

get(url: string, options?: RequestOptionsArgs): Observable<Response>

Example of how to call get and subscribe to the Observable result:

doSomething() {
  this.http.get('http://api.someopendata.org/cities') // make the call
  .pipe(                                              // pipe() let you combine multiple functions into a single function
    map(result => result.cities)                      // map the result to the object we need to return
  )
  .subscribe(                                         // subscribe and do something with the result
    cities => console.log(cities),
    error => console.error('Error: ' + err),
    () => console.log('Completed!')
  )
}

Http: Adding Headers to http calls

If you need to pass headers into a http call, you can construct it by using HttpHeaders class, append data and then add it to options?.

import { HttpClient, HttpHeaders } from "@angular/common/http";

let myHeaders = new HttpHeaders();
myHeaders.append('key', 'value');

this.http.get('http://api.someopendata.org/cities', { headers: myHeaders })

Http: Constructing URL search params

If you need to pass query parameters (like service?mood=’happy’&face=’round’) into a http call, you can construct it by using HttpParams class, append query params and then add it to options?.

import { HttpClient, HttpHeaders } from "@angular/common/http";

let searchParams: HttpParams = new HttpParams();
searchParams.set('mood', 'happy');
searchParams.set('face', 'round');

this.http.get('http://api.someopendata.org/cities', { headers: myHeaders, params: searchParams })

Exercise: Launch Service

For this exercise we will use APIs from SpaceX to get information for upcoming and past launches. All code for ths exercise is located in the spacex folder. You can find the LaunchService in spacex/services/launch.service.ts.

If you are using Playground then you should head to: https://play.nativescript.org/?template=play-ng&id=OAc6BX&v=4 Please Fork the Playground app to create your ‘own’ Playground environment.

You can find the documentation for the SpaceX APIs here.

Exercise: Injecting SpaceX launch service

Let’s start with changing the default route in app-routing.module.ts to '/spacex':

{ path: '', redirectTo: '/spacex', pathMatch: 'full' },

The app will start but when you tap the button View Launches, it will fail with the following error: Error: No provider for LaunchService!

You need to add the LaunchService! to app.module.ts.

HINT Remember that this should be added to the providers.

First import LaunchService

import { LaunchService } from "./spacex/services/launchService"

And then add this inside @NgModule:

providers: [
  LaunchService
],

Now the app should be loading launches without any issues. However not all API calls are implemented yet. The API call for getting the details of a past launch should still be implemented.

Exercise: Implementing the http calls

For your convenience the http service is already injected into LaunchService.

Step 1 - Make it work

If you open launch.service.ts you will notice that getUpcomingLaunches and getPastLaunches are already implemented, which are the API calls required to display the data in the ListComponent.

If you select the tab Previous Launches and tap a specific launch, you should see the details of that specifc launch.

Step 2 - Implement the missing function

Your job is to implement the missing implementation for function getLaunchDetails. This function should make a call to https://api.spacexdata.com/v3/launches/{flight_number} with the flight_number param.

You will need to:

  • construct the url - you can use the baseUrl property as the basis
  • use the http service to call get()
  • return an Observable for type Launch
  public getLaunchDetails(flight_number: number): Observable<Launch> {

    return this.http.get<Launch>(`${this.baseUrl}/${flight_number}`);
  }

Step 3 - Only show past launches for this year (2018)

By adding a query parameter launch_year to the API call you can fetch only launches for a specific year. To fetch only past launches for 2018 you sould make a small change to function getPastLaunches.

You will need to :

  • construct a HttpParams object that holds the parameters that you want to pass
  • add a parameter ‘launch_year’
  • call http get with the url and params
  public getPastLaunches(): Observable<Launch[]> {
    const params = new HttpParams().set('launch_year', '2018');
    return this.http.get<Launch[]>(`${this.baseUrl}/past`, {params: params});
  }

Cross-platform Differences

In the cross-platform work, rendering native UI components (like NativeScript does) is a tough problem because of subtleties in the underlying mobile platforms. As a mobile developer, you’ll run into these from time to time. NativeScript does well at abstracting these differences from you, but dealing with Angular’s status bar / action bar is one of those times you need to do a little more legwork.

The appearance of the status bar / action bar at top makes the app less appealing. So let’s remove it.

Exercise: Fixing the Home page Action Bar on Android

Let’s start by investigating the problem on Android. As you might have noticed, tho Home view has no Action Bar in it’s template (see home.component.html). This works on iOS but Android will still display an ugly text at the top.

Removing the Action Bar on Android

Start by opening the home.component.ts file.

Import the Page class at top:

import { Page } from "ui/page";

Next, update the constructor and inject the page.

constructor(
    private routerExtensions: RouterExtensions,
    private page: Page) {
}

Now we have a page instance available we can change ngOnInit() to hide the actionbar.

ngOnInit(): void {
    this.page.actionBarHidden = true;
}

Lesson 4 - Plugins

In this Lesson you are going to learn how to use a few out of a generous collection of NativeScript plugins.

Most of the plugins you can install either by calling npm install or for those that contain some native iOS and/or Android elements tns plugin add.

Exercise: Setup

In this exercise we will be working on plugins/wizard-profile.component.

If you are using Playground please head to https://play.nativescript.org/?template=play-ng&id=DPPcQ0. In Playground you can only do the Camera and Social Sharing excersises. These plugins are already ‘loaded’ in Playground.
And again … please Fork the Playground app to create your ‘own’ Playground environment.

Let’s start with changing the default route in app-routing.module.ts to '/plugins':

{ path: '', redirectTo: '/plugins', pathMatch: 'full' },

Exercise: Camera Plugin

Exercise: Camera Plugin

You can find the camera plugin here.

To install it run:

npm i nativescript-camera --save

Remember, every time you make a change to native bits of your app (including adding/removing plugins) you need to rebuild and redeploy your app with tns run.

Next, open wizard-profile.component.ts and import nativescript-camera using the line of code below.

import * as camera from 'nativescript-camera';

After that, update the WizardProfileComponent’s takeProfilePicture function to take a picture and call this.updateProfilePicture, passing the ImageAsset you got from the camera plugin’s callback function. Try to figure it out based on the info in the documentation. Note that you might need to call camera.requestPermissions(); from ngOnInit.

ngOnInit() {
  // get camera permissions when loading for the first time
  camera.requestPermissions();

  this.reloadPowers();
}

takeProfilePicture() {
  const options: camera.CameraOptions = {
    width: 300,
    height: 300,
    keepAspectRatio: true,
    saveToGallery: false
  };

  camera.takePicture(options)
  .then((imageAsset: ImageAsset) => {
    this.updateProfilePicture(imageAsset);
  }).catch(err => {
    console.log(err.message);
  });
}

Exercise: Social Share Plugin

Exercise: Social Share Plugin

You can find the nativescript-social-share here

To install it run:

tns plugin add nativescript-social-share

Next, open wizard-profile.component.ts and import nativescript-social-share using the code below:

import * as SocialShare from 'nativescript-social-share';

After that, update the share function in WizardProfileComponent to share the existing messageBody variable.

SocialShare.shareText(messageBody);

Finally, update the WizardProfileComponent’s sharePicture function to share the component’s profilePicture property.

SocialShare.shareImage(this.profilePicture);

Exercise: Fancy Alert Plugin

Exercise: Fancy Alert Plugin

You can find the nativescript-fancyalert plugin here.

To install it run:

npm install nativescript-fancyalert --save

Open wizard-profile.component.ts and import nativescript-fancyalert using the line of code below.

import { TNSFancyAlert } from 'nativescript-fancyalert';

Next, replace the 3 alert calls in displayPower with TNSFancyAlert.showNotice, TNSFancyAlert.showInfo, TNSFancyAlert.showWarning. You can pass in power.name and power.description as the parameters.

displayPower(power: Power) {
  if(power.level < 5) {
    TNSFancyAlert.showNotice(power.name, power.description, 'Nice');
  } else if(power.level < 9) {
    TNSFancyAlert.showInfo(power.name, power.description, 'W00000W!!!');
  } else {
    TNSFancyAlert.showWarning(power.name, power.description, 'Be careful');
  }
}

Exercise: Pull To Refresh Plugin

Exercise: Pull To Refresh Plugin

You can find the nativescript-pulltorefresh plugin here.

To install it run:

tns plugin add nativescript-pulltorefresh

This plugin is slightly different, as it needs to be added directly to the UI, which requires you to register it first.

Open main.ts, import element-registry and then call registerElement (Just make sure to add it before platformNativeScriptDynamic().bootstrapModule(AppModule);):

import {registerElement} from "nativescript-angular/element-registry";
registerElement("PullToRefresh", () => require("nativescript-pulltorefresh").PullToRefresh);

import { platformNativeScriptDynamic } from 'nativescript-angular/platform';

import { AppModule } from './app.module';

import {registerElement} from "nativescript-angular/element-registry";
registerElement("PullToRefresh", () => require("nativescript-pulltorefresh").PullToRefresh);

platformNativeScriptDynamic().bootstrapModule(AppModule);

Once that is done, open wizard-profile.component.html and wrap the PullToRefresh around the ListView

<PullToRefresh (refresh)="onPull($event)">
  <ListView
    ...
  </ListView>
</PullToRefresh>

<PullToRefresh (refresh)="onPull($event)">
  <ListView [items]="powers" class="list-group" (itemTap)="onPowerTap($event)">
    <ng-template let-power="item">
      <StackLayout>
        <Label [text]="power.name + ': ' + power.level" class="list-group-item"></Label>
      </StackLayout>
    </ng-template>
  </ListView>
</PullToRefresh>

Where to go from here?

Congratulations! You’ve completed the NativeScript workshop 🎉

Here some links to interesting web resources:

Regardless of what you choose to do with NativeScript, joining the NativeScript community is a great way to keep up with the latest and greatest in the NativeScript world. Here are some ways you can get involved:

  • Post on Stack Overflow. If you have a problem or a question, post it here.
  • Join the NativeScript Community Slack. The community Slack is a great place to chat with others in the NativeScript community.
  • Follow @nativescript on Twitter for updates on all things NativeScript.
  • Sign up for the NativeScript newsletter. The newsletter will deliver NativeScript articles, news, plugin updates, and more straight to your inbox.
